Project Description

Performance and Usages

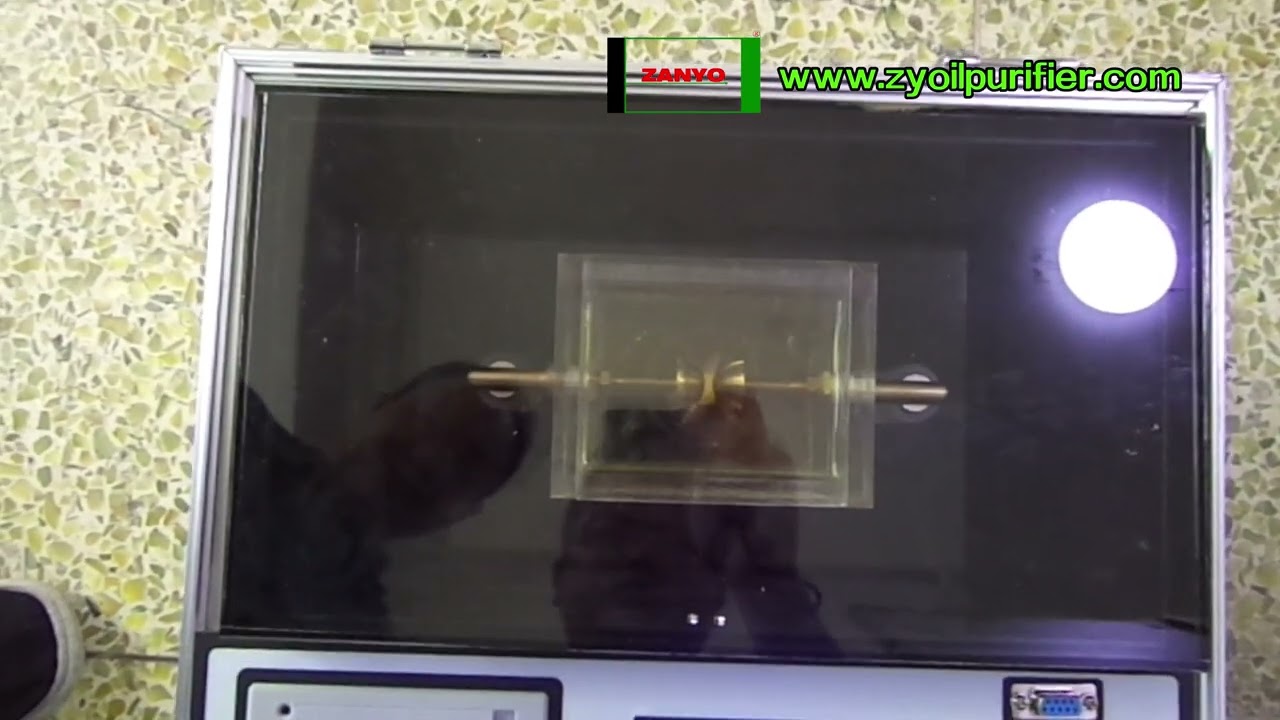

ZYIIJ-II Automatic BDV oil tester is the insulation oil tester. it is is special for testing insulating oil’s dielectric strength.
ZYIIJ-II automatic BDV oil tester is designed by IEC165 dielectric strength of insulating oil. Adopt industrial single chip to control. Applied large integrate circuit, new type I/O interface, the special tester and anti-jamming technology which greatly improved the capability of device.

Technical Features

1. Operate simply.
2. Adopt menu management, impute parameter is ok.
3. Can be stored ninety-nine kinds of oil test data which is convenient to print and adjust the data .The test data can be stored 10 years
when the electrical is power off.
4. The system clock can be run when be power off.
5. Be provided with software upgrade through RS232 and test with PC.
6. High capability of anti-jamming.
7. High precision.
8. Small size, light and run in the open air.

Technical Parameters

1.  Power Supply: Ac220V ±10%, 50HZ (According to client’s customizable)
2. Output Voltage: 0–80KV or 0–100KV
3. Capacity: 1.6KVA , 2.0KVA
4. Speed of Pressure Rise: About 2KV/S
5. Voltage Test Precision: ± 3%
6. Breakdown Sensitivity: < 2KV
7. Wave Difference: ≤ 3%
8. Time of Breakdown: ≤ 10ms
9. Working Condition:
Temperature : 0℃~40℃
Humidity: The Biggest Comparatively Humidity85%
10. Reserve Circumstance:
Temperature :-20℃~60℃
Humidity : The Biggest Comparatively Humidity75%
Working Altitude: < 1500(If Over1500mcan Be Designed Specially) meter
11. Dimension: 480mm*460mm*460mm
