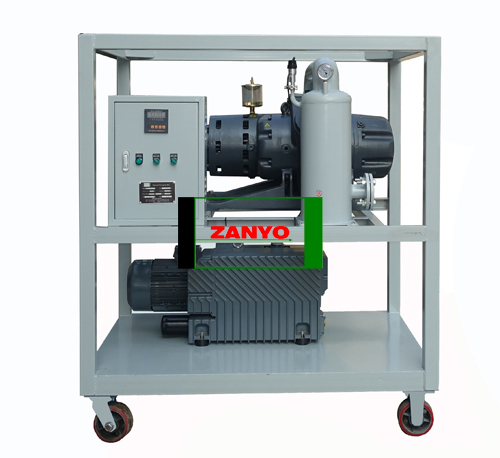

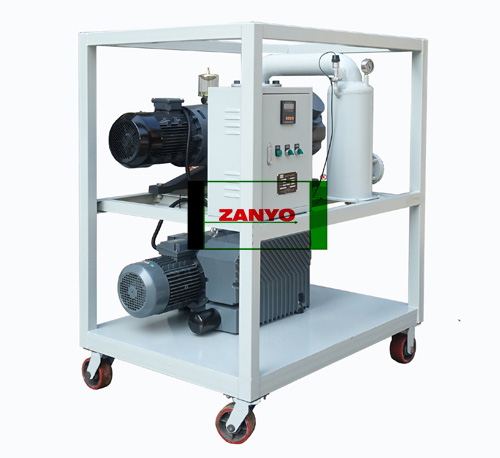

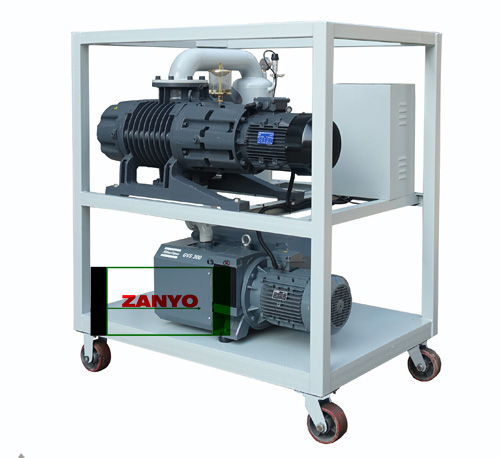

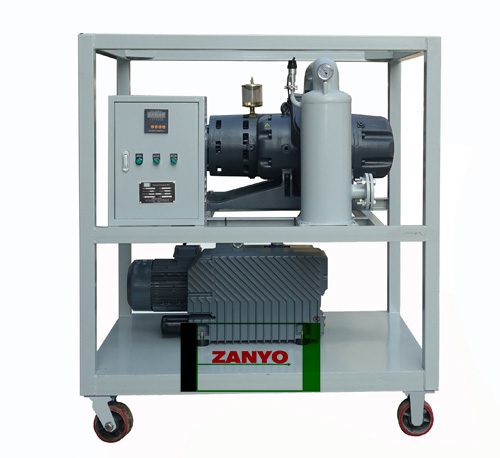

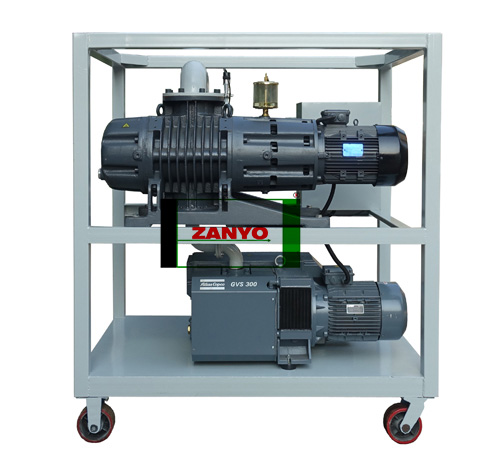

Mainly used to evacuate GIS (Gas-Insulated Switchgear) and other high-voltage electrical equipment, creating the required vacuum conditions before filling with SF₆ or other insulating gases.
- Complete Protection & Alarm System – Provides phase sequence, phase loss, overvoltage, undervoltage, and leakage protection with fault indicators.
- Automatic Vacuum Control – Allows users to preset the target vacuum level, with automatic start and stop based on the set value.
- Timed Operation – Supports preset operating times and automatic shutdown when the set time is reached.
- High-Efficiency Dual-Pump System – Atlas vacuum and Roots pumps start simultaneously, improving evacuation efficiency by 30%–50%.
- High Vacuum Performance – Achieves an ultimate vacuum level of below 5 Pa.
- Anti-Oil Backflow Protection – A differential pressure valve prevents vacuum pump oil from flowing back into the GIS chamber during shutdown or power failure.
- Optional PLC & Touchscreen Control – Enables fully automatic operation, remote start, and real-time monitoring.
- Complete Connection Accessories – Supplied with stainless steel vacuum hoses and quick flange connectors.
Zanyo Vacuum Extraction System working vacuum is less than 133Pa, the ultimate vacuum is less than 5Pa. The unit is fast starting and large pumping speed, etc. It can be used for vacuum extraction, applied in industries such as vacuum metallurgy, welding, chemical industry, petroleum and vacuum system, especially used for vacuum extraction in power equipment such as transformers.
| Item | Guarantee Indexes |
|---|---|
| Ultimate Vacuum | ≤5 Pa |
| Working Vacuum |
133 Pa |
- The machine adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure, are obviously better than any other devices. ZYV equips an electrical control system and a cooling water system.
- It adopts automatic vacuum relay for automatic control.
- It equipped with vacuum pump oil circulation filter and circulating water cooling device, to ensure that vacuum pump oil is not aged, circulating water to keep the pump with normal temperature.
- If clients required larger extraction rates, we can equip two roots pumps, machine is available for faster extraction under high vacuum condition.
| Model | 70 | 150 | 300 | 600 | 1200 | 2600 |
| Pumping Rate L/S | 70 | 150 | 300 | 600 | 1200 | 2600 |
| Ultimate Vacuum Pa | 5 | |||||
| Extraction Stages | 2 | |||||
| Roots Pump (optional) | ZJY‑70 | ZJY‑150 | ZJY‑300 | ZJY‑600 | ZJY‑1200 | ZJY‑2600 |
| Power Supply | According to clients requirements | |||||
| Matched Power KW | 4 | 6.5 | 9 | 11 | 18.5 | 40 |
| Weight Kg | 480 | 650 | 960 | 1250 | 1560 | 1900 |
| L mm | 1000 | 1100 | 1360 | 1500 | 1700 | 1950 |
| W mm | 600 | 650 | 900 | 1100 | 1150 | 1200 |
| H mm | 1180 | 1350 | 1700 | 1850 | 1950 | 2000 |
Optional Configuration
Germany Leybold Vacuum Gauge
Germany Robert RBT Ball Valve
Double Zone/Single Zone Micro NC Vacuum Gauge
- GIS (Gas-Insulated Switchgear) – Vacuum evacuation before filling with SF₆ or other insulating gases.
- High-Voltage Switchgear – Removes air and moisture from sealed electrical equipment before commissioning.
- Power Transformers – Supports vacuum evacuation during transformer installation, maintenance, and insulation treatment.
- High-Voltage Circuit Breakers – Used during installation and servicing of gas-insulated circuit breaker systems.
- Electrical Substations – Suitable for high-voltage equipment installation, maintenance, and gas-handling operations.
- Power Transmission Projects – Used for vacuum preparation of high-voltage electrical equipment before gas filling and operation.
Contact Zanyo Today for Custom Vacuum Evacuation Solutions
Looking for a reliable vacuum evacuation solution for GIS or other high-voltage electrical equipment? ZANYO provides high-performance vacuum evacuation systems with fast pumping, automatic vacuum control, anti-oil backflow protection, and optional PLC operation. Systems can be configured according to your required vacuum level, pumping capacity, voltage, and project conditions.
Contact us today to discuss your technical requirements and get a customized solution and quotation.
