Project Description


ZYW Vacuum Dehydration System is good economic benefits, widely applied in petroleum, food, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc. it is specially for separating water from oil, it adopts vacuum distillation technology, and can quickly and completely remove water from oil.

This equipments can service cooking oil, biodiesel oil, engine oil, lube oil, insulating oil, turbine oil etc..

Food usage: we suggest to choose stainless steel body.

Machine Features

  • Separation system: specially designed evaporator, enlarged the separating surface and separating time.
  • To adopt the vacuum vaporizing technology to remove water, odor, and alcohol, and volatilization materials to Inhibit acid value and peroxide value increases.
  • Heating system: efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
  • Unique and advanced dewatering system.
  • Protecting system: to adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

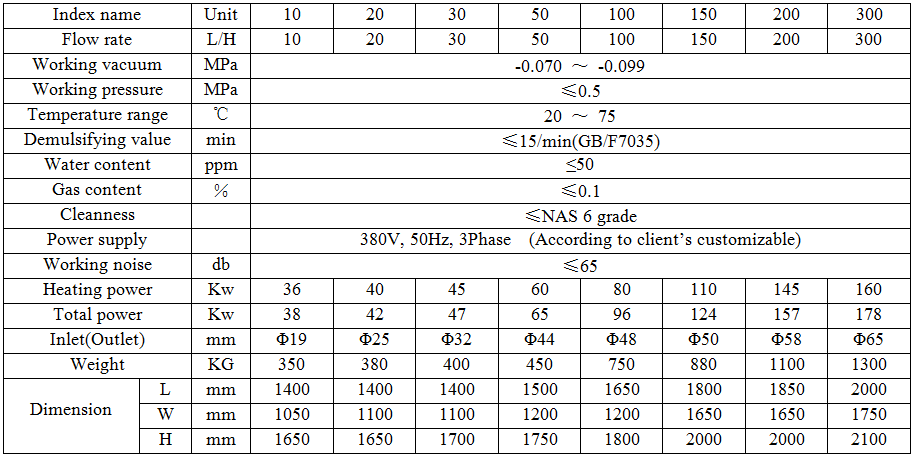

Technical Parameters

ZYW Vacuum Dehydration System
