Project Description

Insulation Oil Purifier Machine Performance and Usages

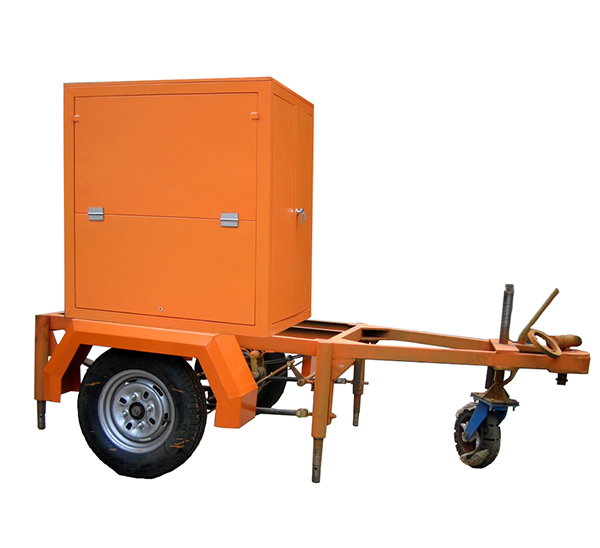

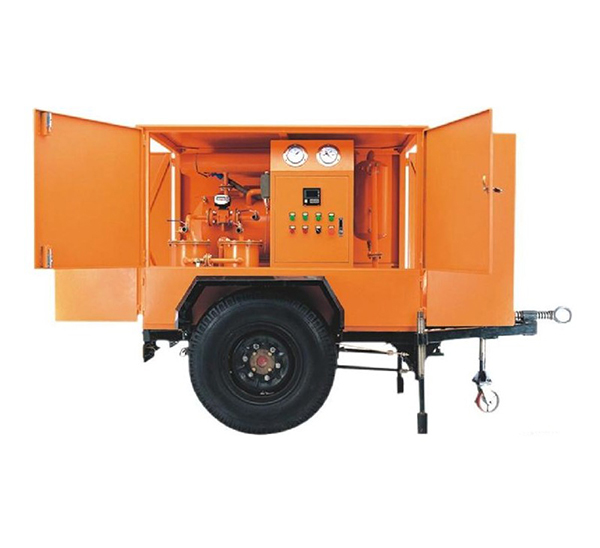

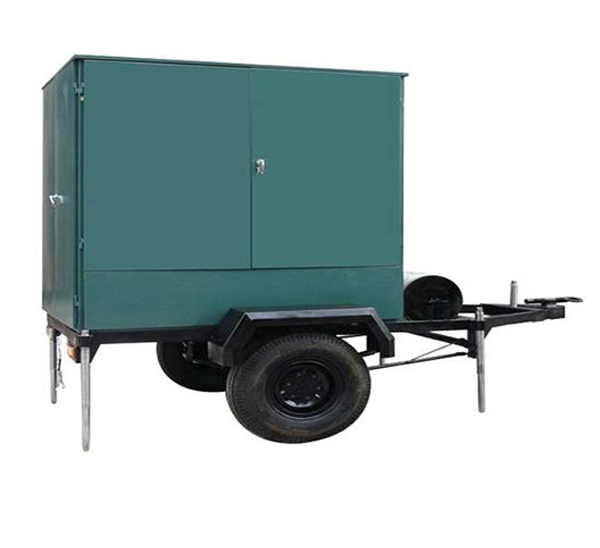

ZYM Insulation Oil Purification Machine with Single-axle trailer is mounted with Single -axle mobile trailer, with tow wheels. Also called Mobile Insulation Oil Purification Machine. It can move long distance working in field, it can be used indoor and outdoor.

ZYM Insulation Oil Purification Machine is widely used in electric power, petroleum, transportation, and other industries. it is an oil purifier which is easy to move and to work on the field. ZYM we installed enclosed doors and trailers on the basis of the original vacuum oil purifier , and equipped with shock absorption, spring steel plate, with brakes, turn signal light, etc. it is safe and reliable in process of driving.

ZYM is mainly used to remove moisture, gas and impurities from insulation oil and improve insulation performance. It is suitable for purifying unqualified transformer oil, cable oil, switch oil and other insulating oil; and also for degassing, dehydrating and removing impurities of hydraulic oil, aviation oil, lubricating oil etc.

ZYM can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

In fact, ZYD-II type ,ZYD-I type, ZYS type , ZYL type, ZYT type etc., these vacuum oil purifier machines can be installed mobile trailer and enclosed doors.

Mobile Insulation Oil Purification Machine Advantages

  • Equipped with trailer wheel, it is easy to move.  It can operate once it is well placed,  suitable for field operation
  • ZYM is that can move long distance working in field, it can be used indoor and outdoor.
  • Adopting many innovative designs from oil purifier industrial at home and abroad, it is at the leading level in oil treatment technology and equipment performance, with characteristics of high working vacuum, high oil purifying efficiency and high precision.
  • Control System: Optimized design of control interlock protection device, overpressure alarm and protection, phase sequence protection,  to ensure whole machine working stably for a long time. Automatic pressure alarm  system, automatic overload protection system, automatic constant temperature system, automatic bubble elimination system, automatic protection of blowout prevention and other advanced technologies, to ensure the safe operation of untended operation.
  • Degassing And Dehydration System:Adopting advanced atomizing system, three-dimensional separation tower and flash evaporation technology, it can quickly remove moisture and gas from the oil by forming parabolic in the special designed vacuum tank.
  • OilFiltration System: Adopt high quality filter element, multi-stage precise filtration, and level-by-level encryption technology, which can remove fine impurities and absorb large amount of pollution. Primary filter can be cleaned and used repeatedly without secondary pollution.
  • Heating System:by using of high quality heating elements, excellent corrosion resistance, thermal stability, viscosity resistance, insulation, chemical resistance and wear resistance. The safe and reliable carbon fiber heating system with the functions of quickly heating, heating uniform, etc..
  • Oil Transferring System: adopt to choose different type of oil pump according to the oil quality and oil viscosity.  Special material and special performance curve ensure that oil flowing will never cause gap discharge to bringacetylene, oil treatment process and equipment performance is in the leading position.
  • Transformer Oil Recycling System(optioinal): It can quickly remove carbon deposition from transformer oil which caused by arc, to make the inferior oil quality reach new oil standard.
  • Optional Configuration: PLC control, touch screen, moisturesensor, BDV Oil tester, enclosed doors, mobile trailer, lights, tool box, special frame designing, etc.

Transformer Oil Purifier Technical Parameter

Index Unit 6 10 20 30 50 80 100 125 150 200 250 300
Capacity L/Min 6 10 20 30 50 80 100 125 150 200 250 300
Dielectric Strength KV 60
Water Content PPM 10
Gas Content % 0.1
Clean Grade NAS1638 6
Working Vacuum MPa -0.08~-0.1
Working Pressure MPa ≤0.4
Temperature Range 40-70
Power Supplier As per user’s option
Working Noise dB ≤70
Heating Power KW 5 9 15 24 30 48 60 72 90 120 150 180
Total Power KW 6.12 10.5 16.8 26.2 33 53.5 65 77 97 127 158 190
Pipe Size Inlet


19 25 25 32 32 45 45 45 58 58 65 65


19 25 25 32 32 45 45 45 58 58 65 65
Weight kg 150 180 240 290 330 650 800 950 1100 1350 1500 1600
Dimension L mm 930 1100 1130 1220 1300 1350 1420 1430 1900 1950 2000 2000
W mm 620 760 800 820 900 1000 1000 1000 1600 1650 1700 1700
H mm 1280 1100 1220 1300 1310 1350 1750 1780 2100 2100 2100 2100
